PASSIVE CLOUD COVER DETECTOR
Reliable. Accurate. Maintenance-Free.
Passive Cloud Cover Detector
The Passive Cloud Cover Detector from Optical Sensors Sweden is a cutting-edge, all-sky imaging sensor that delivers continuous, accurate cloud cover measurements – day and night, in all weather conditions.
- Measures cloud cover in oktas (0–8)
- High accuracy and fast response
- No moving parts – long lifespan
- Compact, robust and weatherproof
- Low power consumption
- Plug & play with multiple output options
Key Features
All-Sky Imaging
180° hemispherical view for continuous monitoring of the entire sky.
Accurate Cloud Cover
Measures cloud cover in oktas (0–8) with high accuracy.
Day & Night Performance
Reliable cloud cover measurements throughout changing light conditions.
Built for Harsh Environments
IP65 housing provides protection and durability for outdoor operation.
Easy Integration
RS232 / 0–5V interfaces allow simple integration with monitoring systems.
Advanced Image Processing
On-board processing delivers consistent, high-quality cloud cover data.
Passive Cloud Cover Detector
Accurate All-Sky Cloud Monitoring
The Passive Cloud Cover Detector (PCCD) uses a hemispherical imaging sensor and advanced image processing algorithms to measure total cloud cover in oktas (0–8).
The sensor captures high-quality sky images and calculates cloud cover with exceptional accuracy and consistency.
The PCCD provides continuous cloud cover measurements from 0 to 100% CCF, making it suitable for reliable monitoring of sky conditions and cloud cover variations.
Installation Plate / Clamp
The installation plate / clamp is available as an additional mounting accessory for the PCCD unit. It provides a convenient solution for secure and stable installation of the sensor.
Short Data for the Unit
| Unit of Measurement | CCF / Okta |
| Measurement Range | 0 to 100% CCF |
| Typical accuracy in CCF output | ± 20% |
| Approx. size | 22 × 13 × 15 cm |
| Power supply | 12 Volt DC |
| Current consumption | About 30 mA for electronics and about 50 mA for heating |
| Temperature range | -20 to +50 deg C |
| Output |
Analog 0 to 5V, for CCF 0 to 100%. Alt. digital RS232 polled or streaming |
| Mounting | In the lower part of the box there are four channels for M6 screws, on a rectangle 82 × 204 mm, that can be used for the mounting. |
Where Sky Monitoring Matters
Reliable cloud cover measurements for a wide range of monitoring and environmental applications.

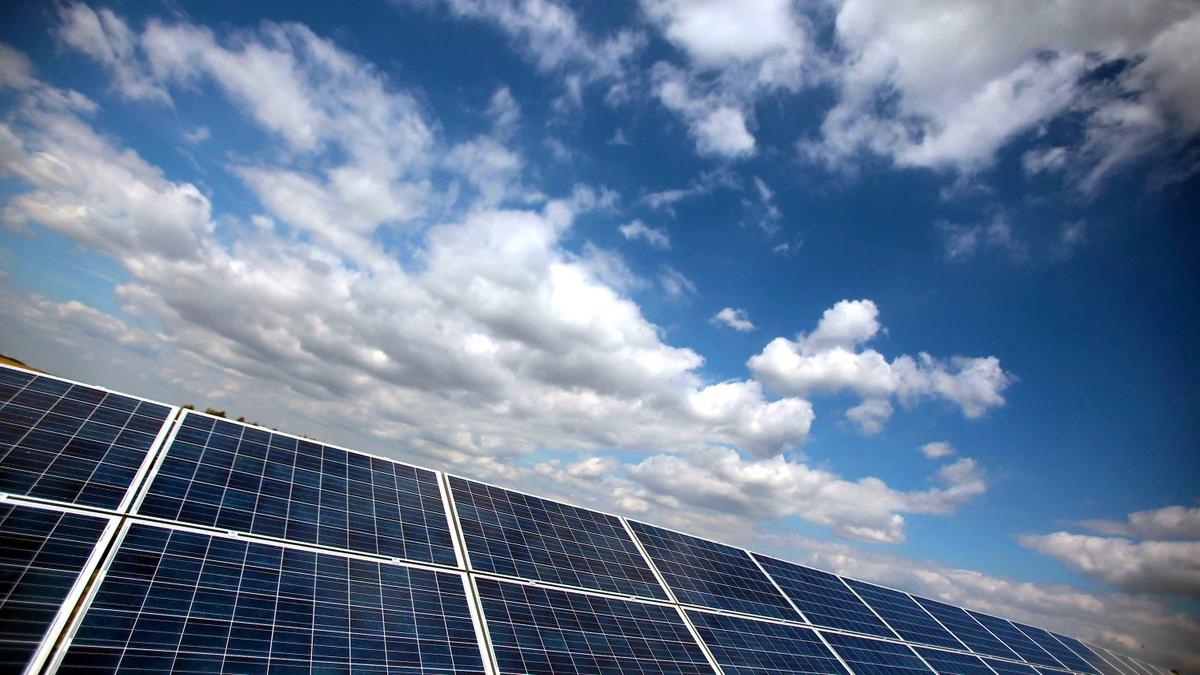

Solar & PV Monitoring
Monitor cloud cover conditions to support solar and photovoltaic system performance.

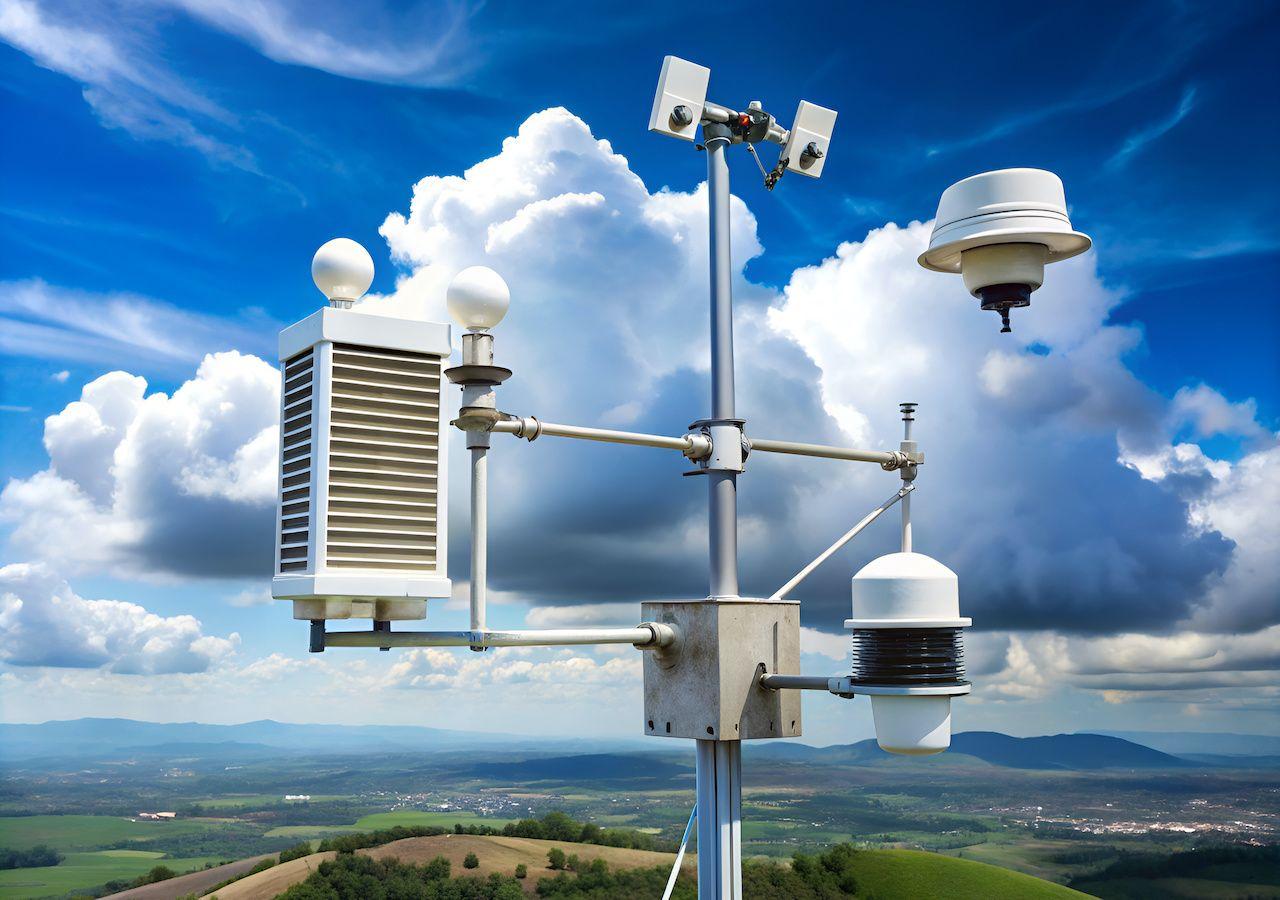

Weather Stations
Provide continuous cloud cover information for professional weather monitoring systems.

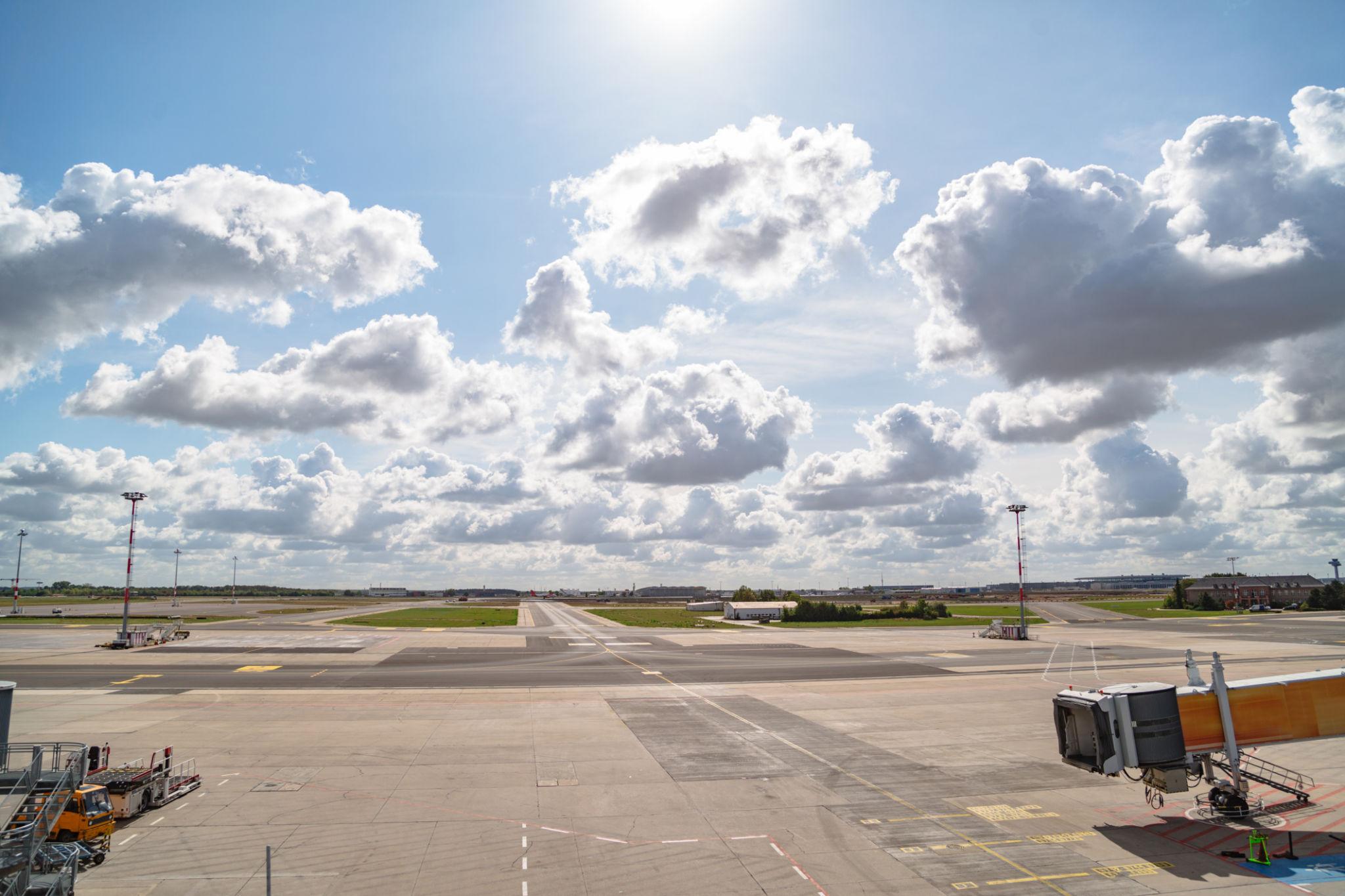

Aviation & Airports
Cloud cover information for aviation, airport and atmospheric monitoring applications.

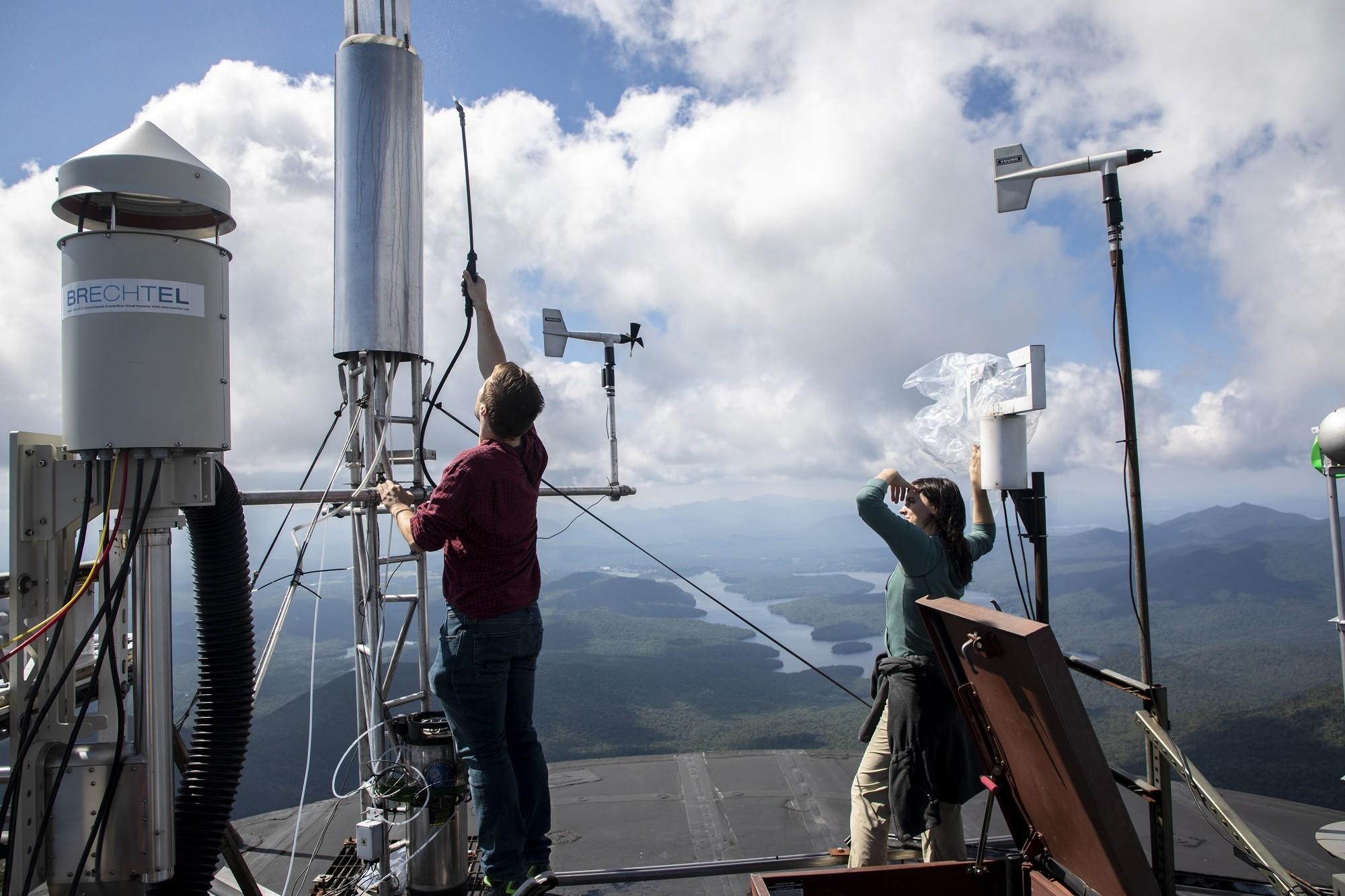

Research & Education
Useful for atmospheric research, scientific studies and educational applications.

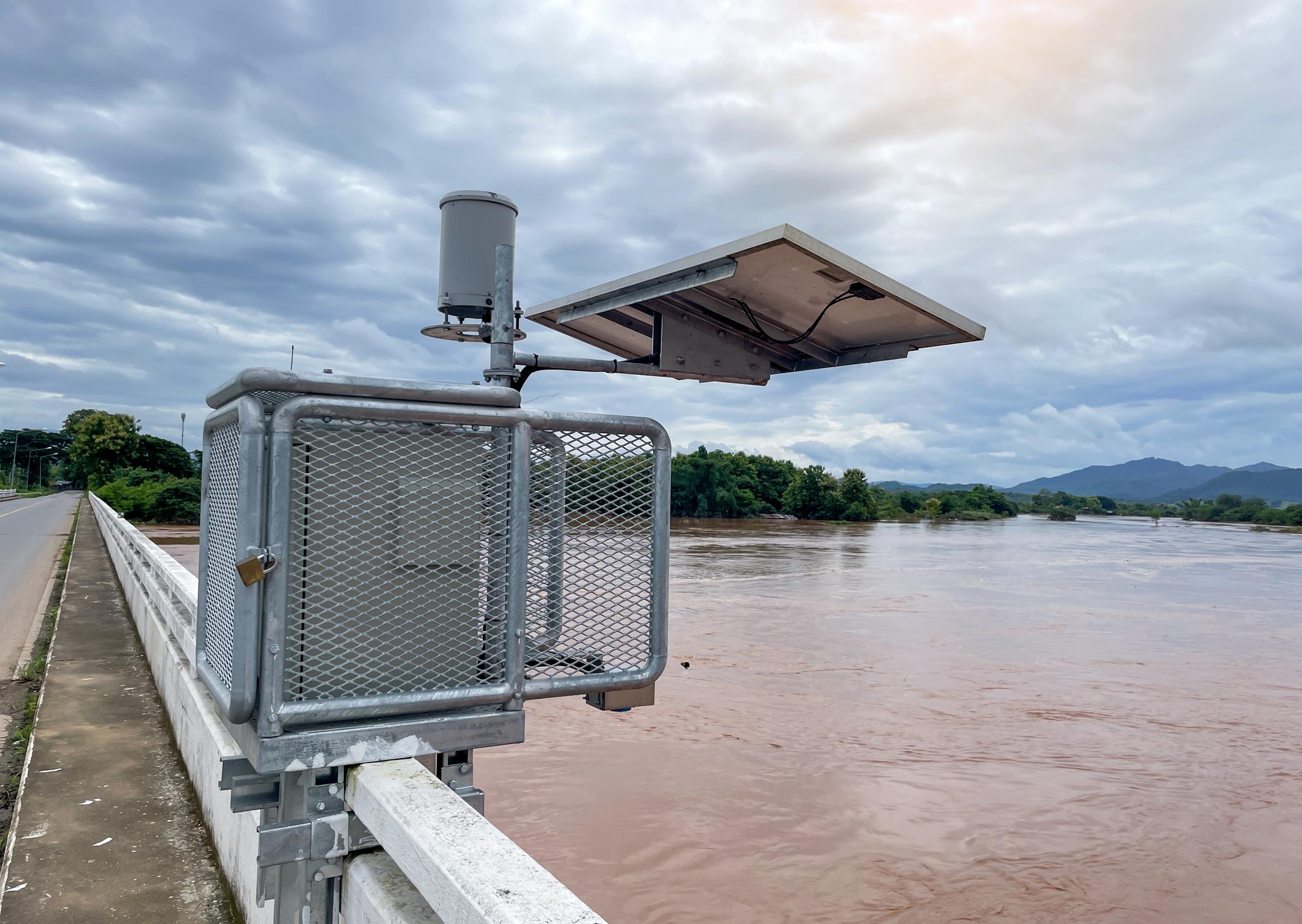

Hydrology & Climate Monitoring
Support cloud and atmospheric observations for hydrology and climate monitoring.
Want to know more about PCCD
Download the complete technical documentation for detailed product information and specifications.
