NON-CONTACT Safe distance measurement
⚡
BATTERY POWERED Up to 15h continuous operation
◈
WIRELESS Bluetooth mobile connectivity
✓
IP67 Waterproof construction
PRODUCT OVERVIEW

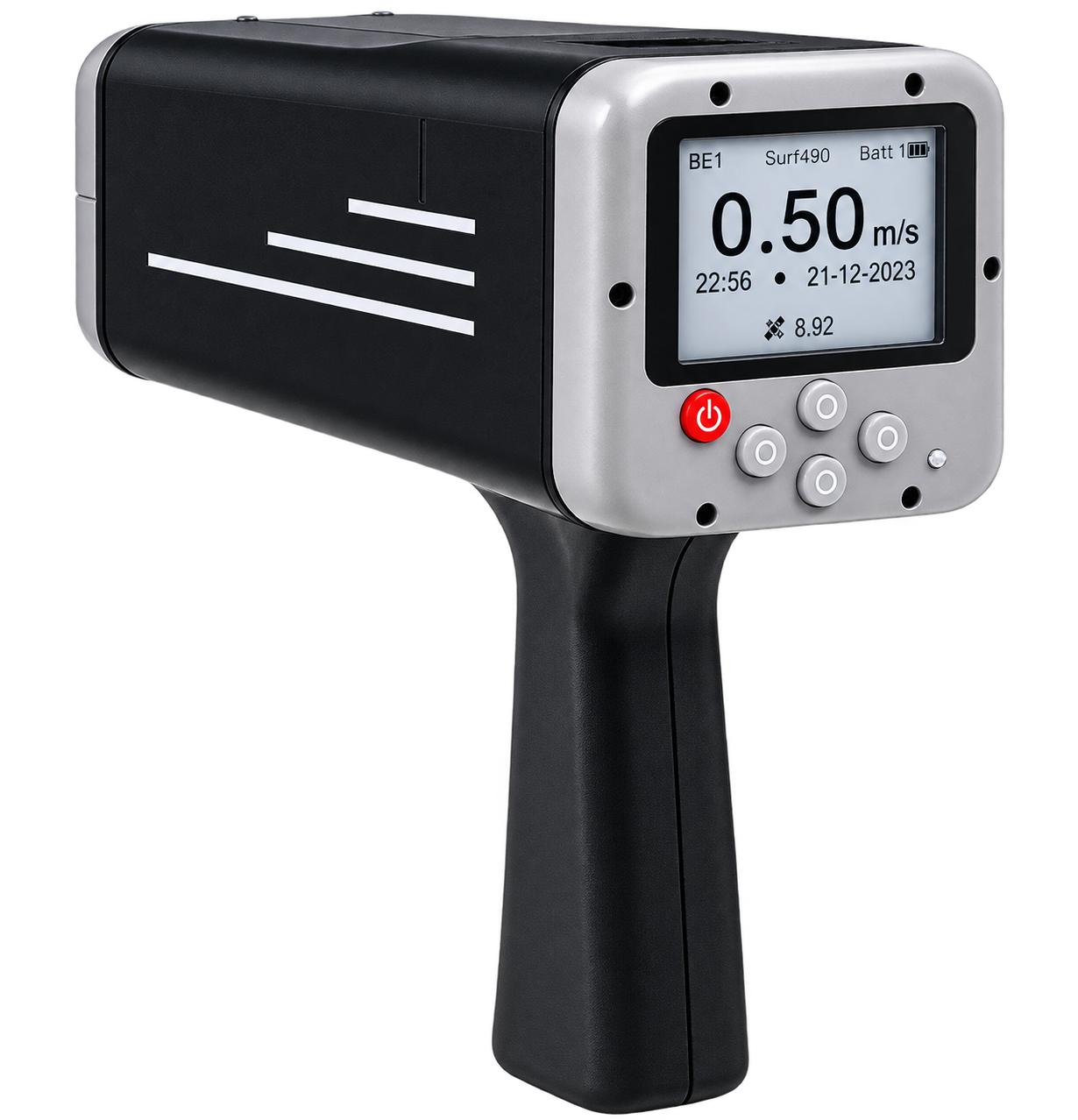

Non Contact Water Current Meter

Accurate. Reliable. Non-Contact. Everywhere.

Non Contact Water Current Meter
Non-contact flow velocity measurement with advanced K-band radar technology

Advanced K-band radar technology for non-contact flow velocity measurement in rivers, wastewater, slurry and oceans.

≈

K-band radar for non-contact flow velocity measurement in rivers, wastewater, slurry and oceans.

◉

Compact, handheld, battery-powered and user-friendly design.

◇

Corrosion and sediment resistant with up to 100 m non-contact measurement for improved operator safety.

⌁

Built-in angle sensor with one-key automatic angle correction and flow velocity calculation.

APPLICATIONS

Built for demanding water environments.

Designed for non-contact flow velocity monitoring across different environments and field applications.

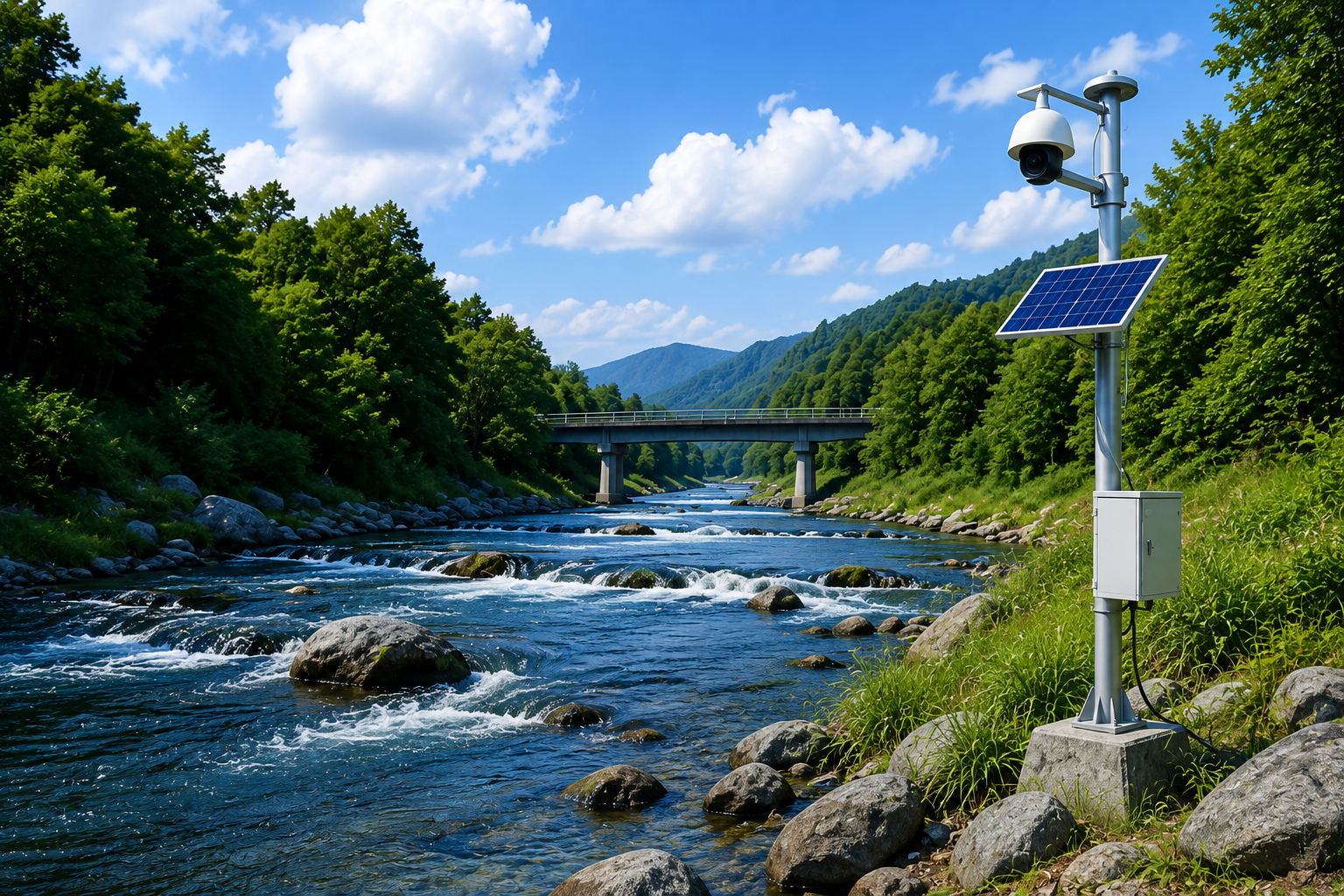

Water Environment Monitoring
≋

Water Environment Monitoring

Canal, river, wastewater and ocean flow velocity monitoring.

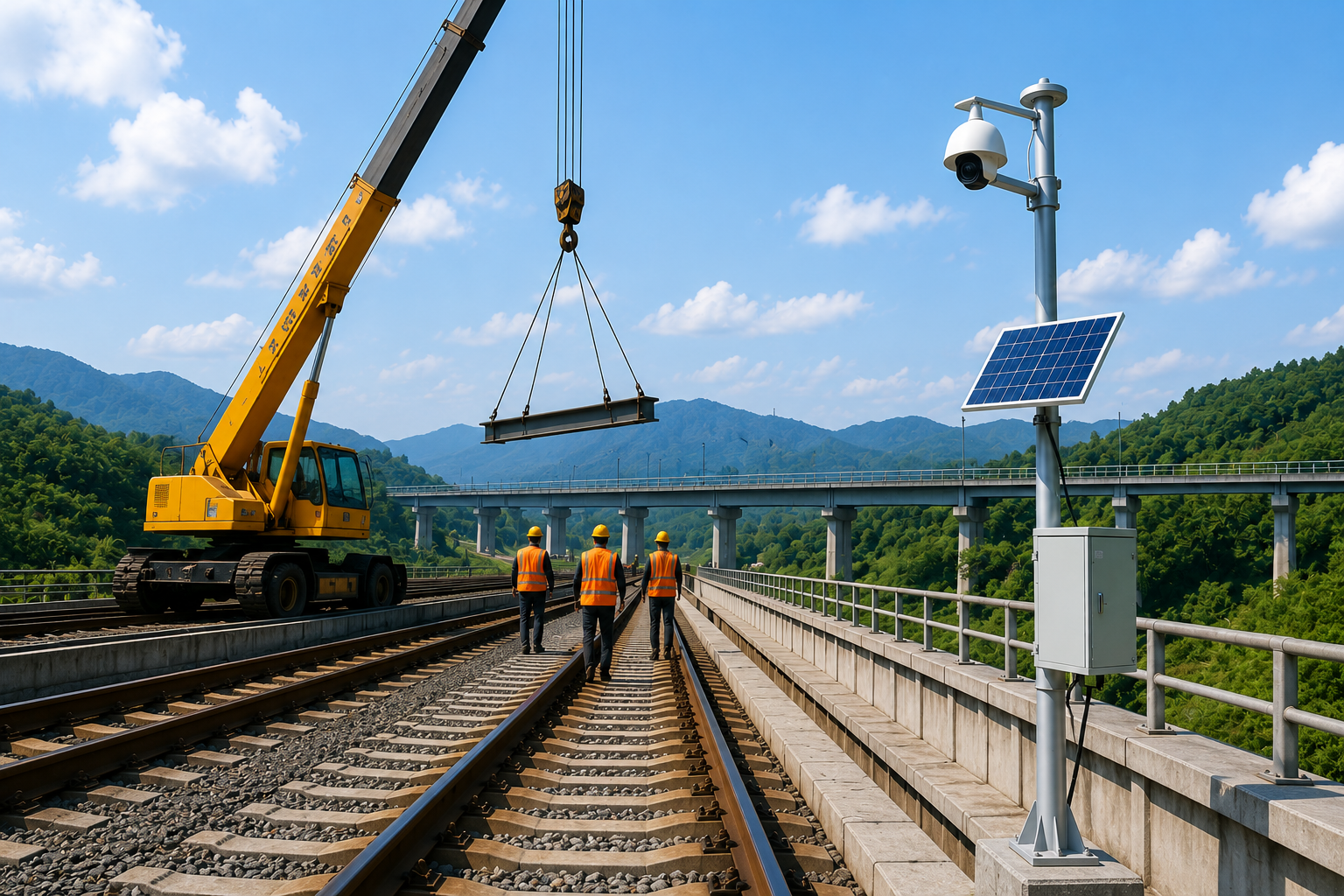

Engineering Construction Monitoring
⚙

Engineering Construction Monitoring

Flow velocity monitoring for railway and bridge construction.

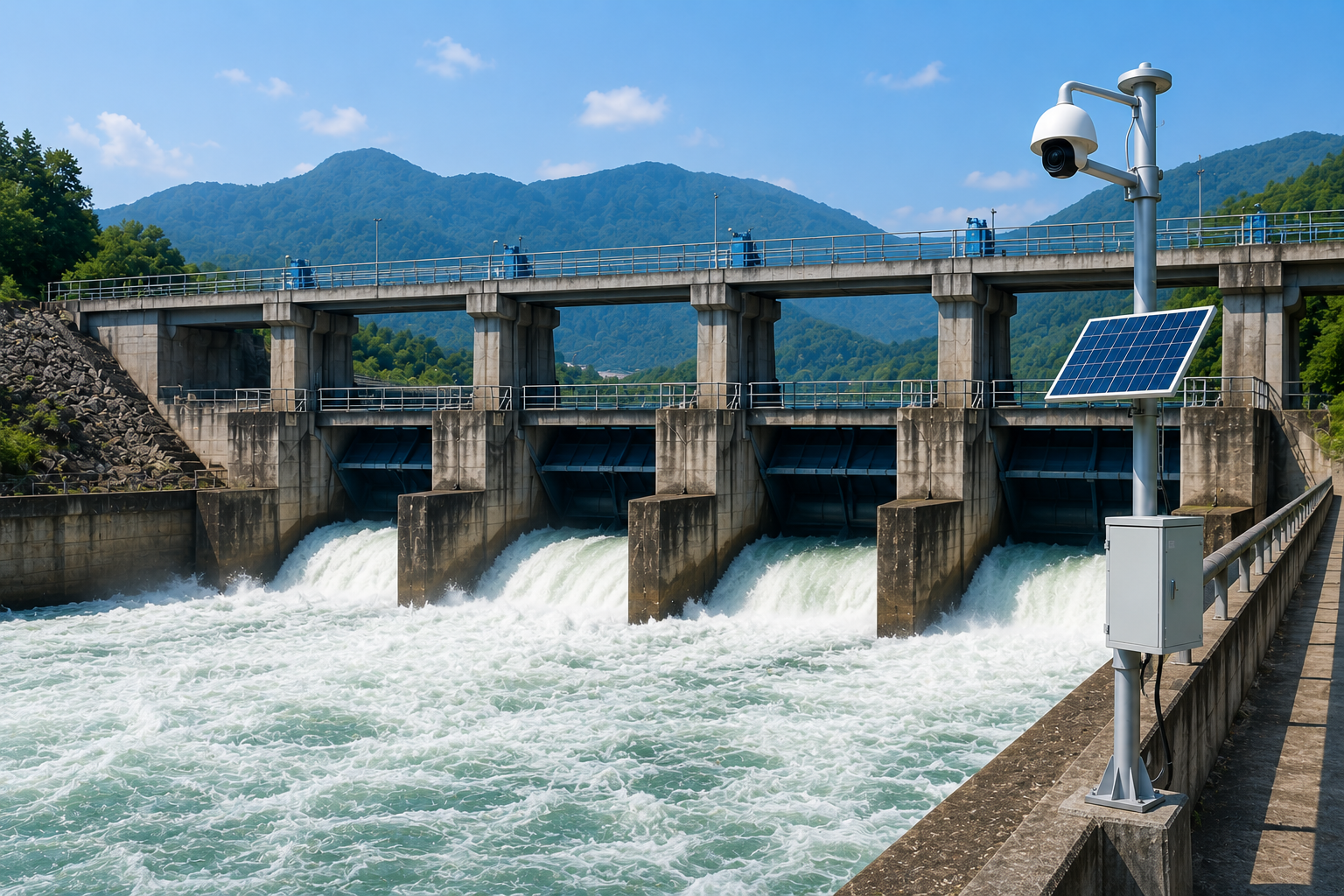

Field Flow Monitoring
◇

Field Flow Monitoring

Portable flow measurement for rivers and challenging environments.

PRODUCT HIGHLIGHTS

Small instrument. Powerful capabilities.

🪶

Compact & Lightweight

Less than 700g for easy transportation and field use.

🔋

Rechargeable Battery

Up to 15 hours of continuous operation.

💧

Waterproof Construction

Designed for harsh field environments.

∠

Built-in Angle Sensor

Automatic angle correction for accurate measurements.

100

Non-Contact Measurement

Up to 100m measurement distance without physical contact.

BT

Wireless Connectivity

Bluetooth low-power connectivity through mobile APP.

▤

Data Storage

Stores up to 2000 measurement records.

◈

Durable Design

ABS rugged housing ensures safety and durability.

TECHNICAL PARAMETERS

Complete technical specifications.

Detailed technical parameters of the Non Contact Water Current Meter.

⚙
NON CONTACT WATER CURRENT METER

Technical Parameters

Measurement Range 0.03~20 m/s
Measurement Accuracy ±0.01 m/s ; ±2%FS
Resolution 0.01 m/s
Operating Temperature -20~+70°C
Radio Wave Emission Angle 12°
Radio Wave Transmission Power 18 dBm
Radio Frequency 24 GHz
Waterproof Rating IP67
Measurement Distance 100 m
DOCUMENTATION

Want to know more about Non Contact Water Current Meter?

Download the complete technical documentation for detailed product information and specifications.
